General Information
Brand
Greenlee
Part Number

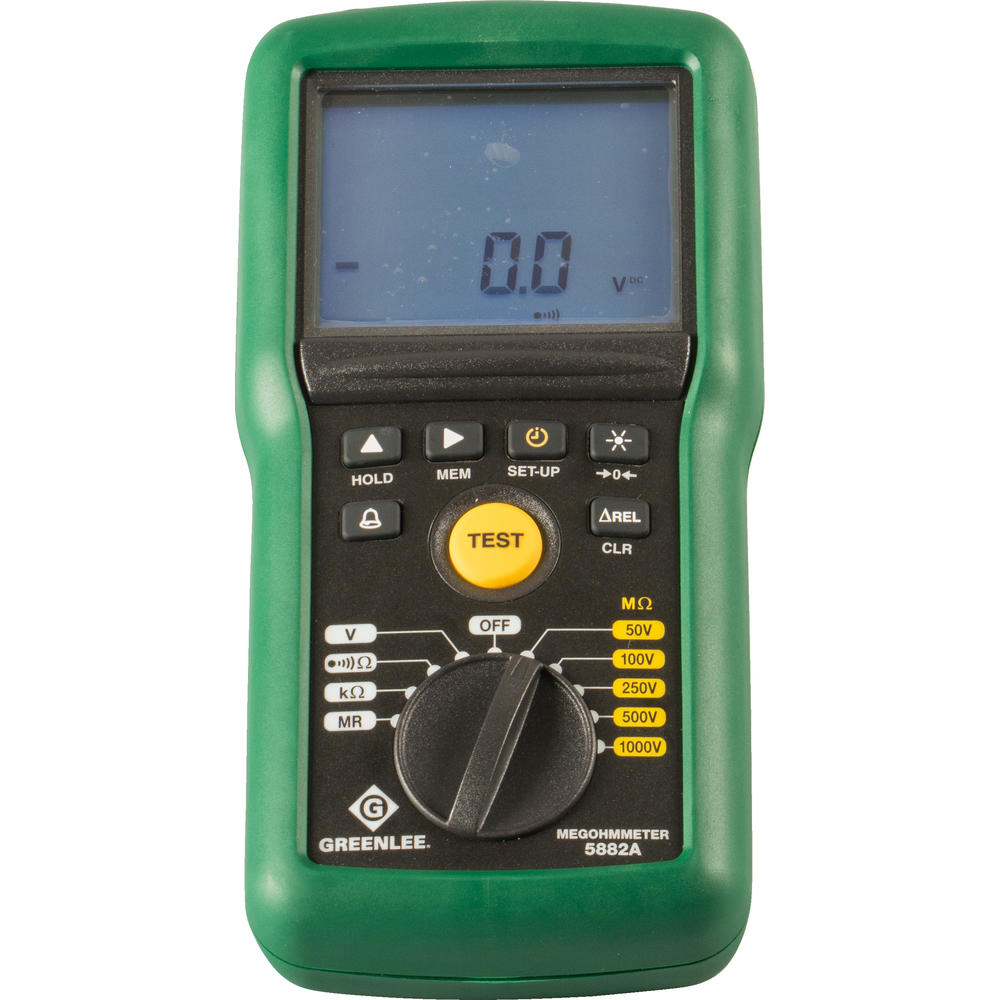

5882A-C
Product Type

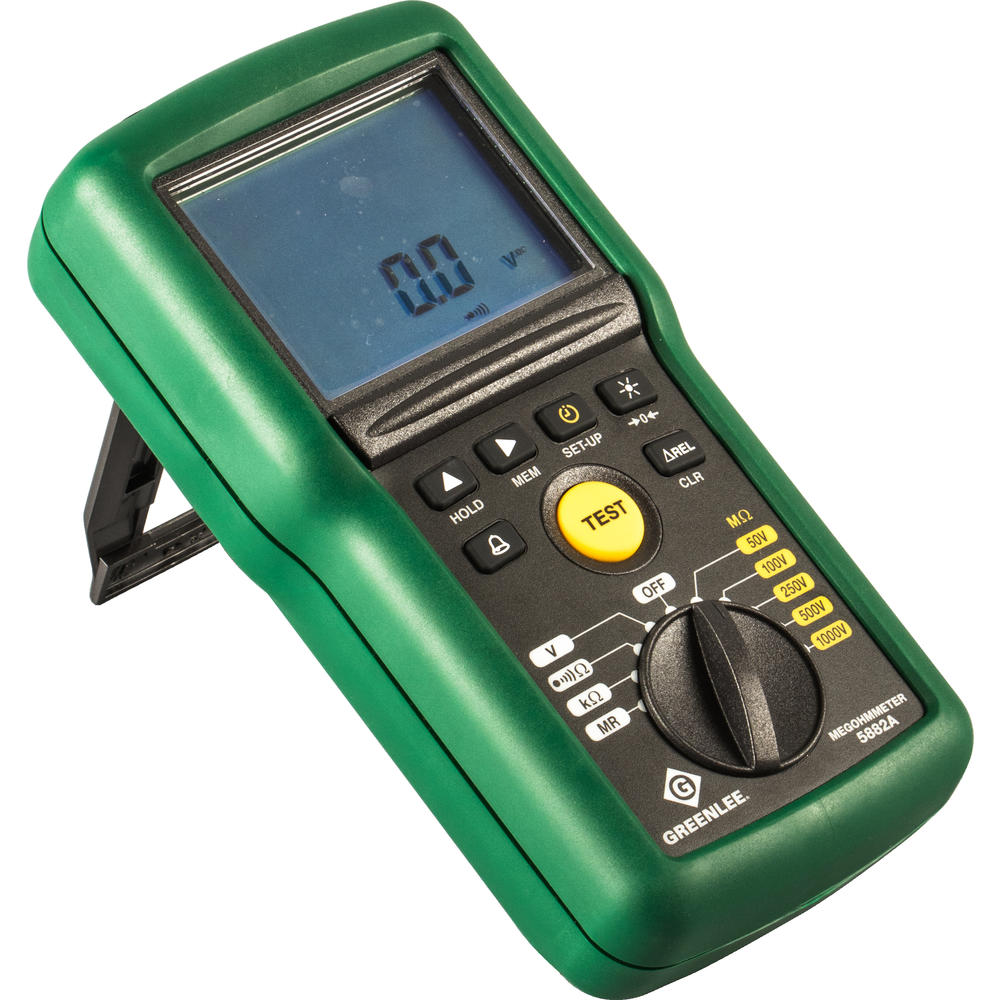

Megohmmeter/Insulation Tester
Application

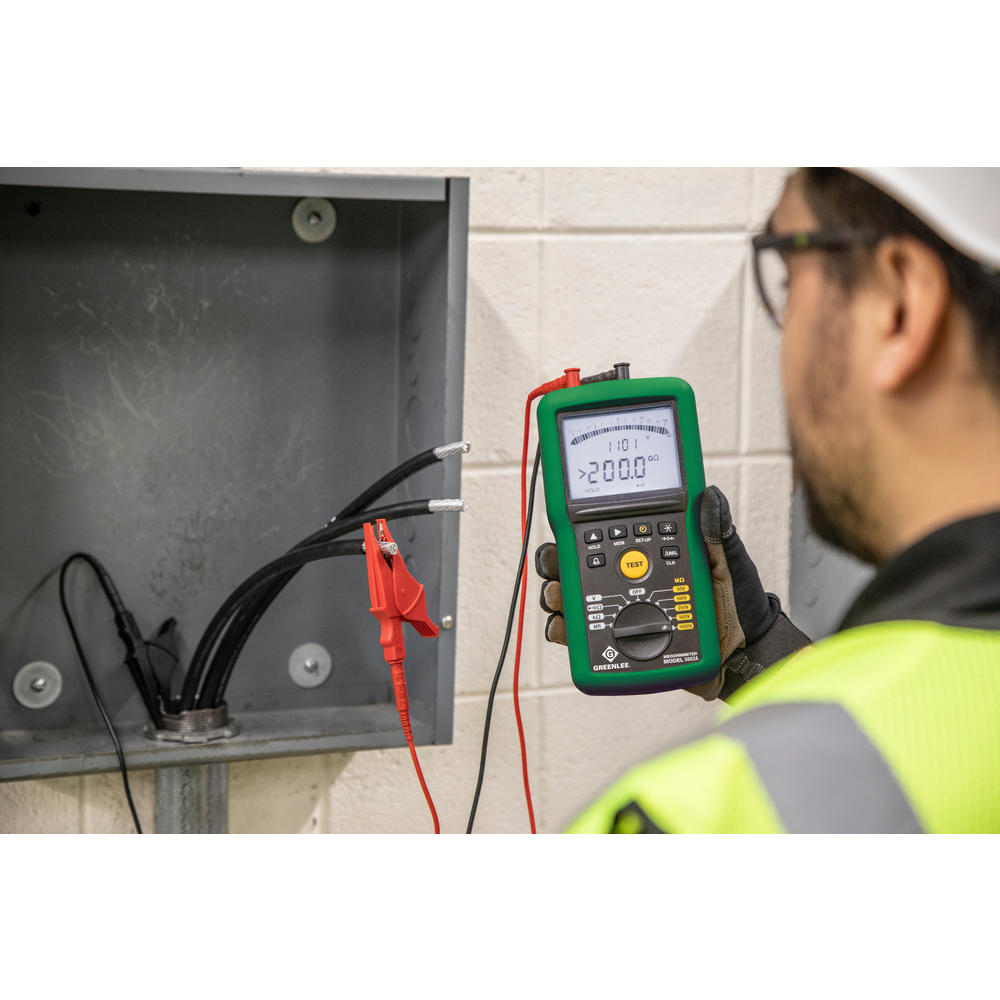

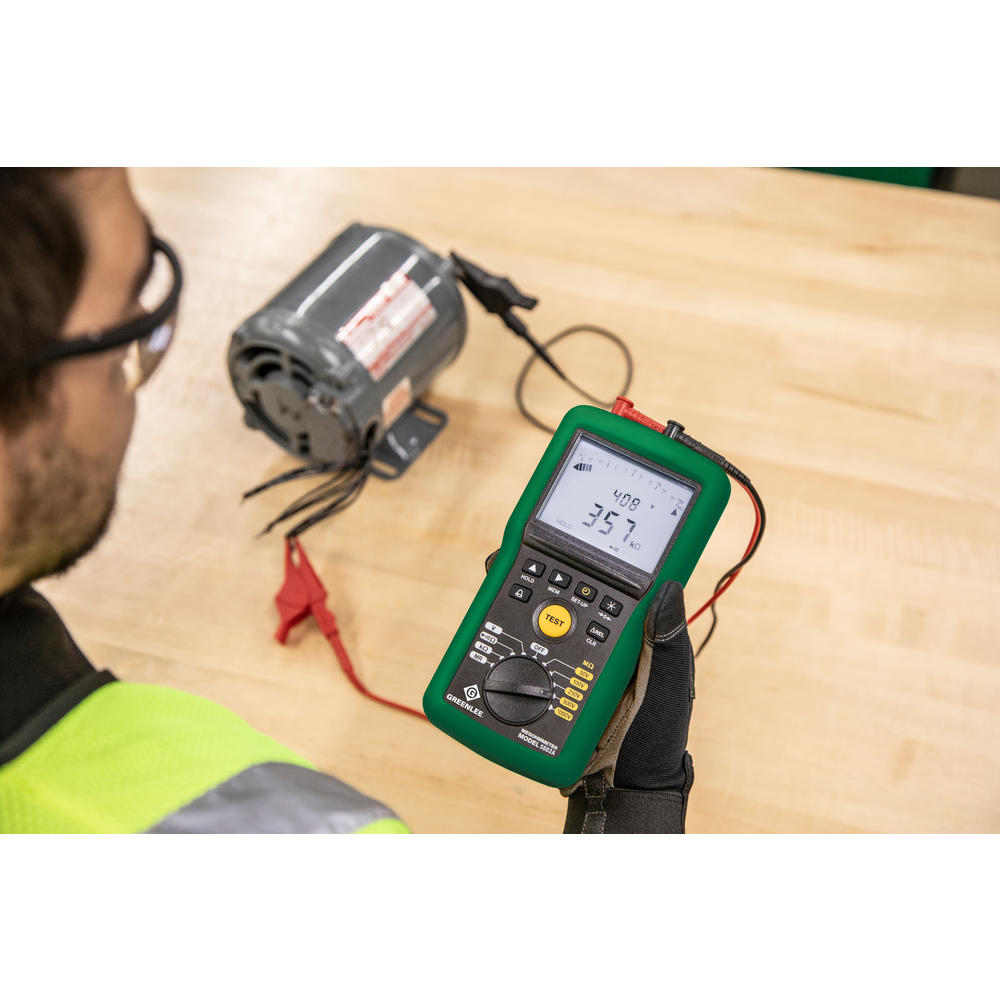

Insulation Testing Cable and Rotary Equipment
What’s Included

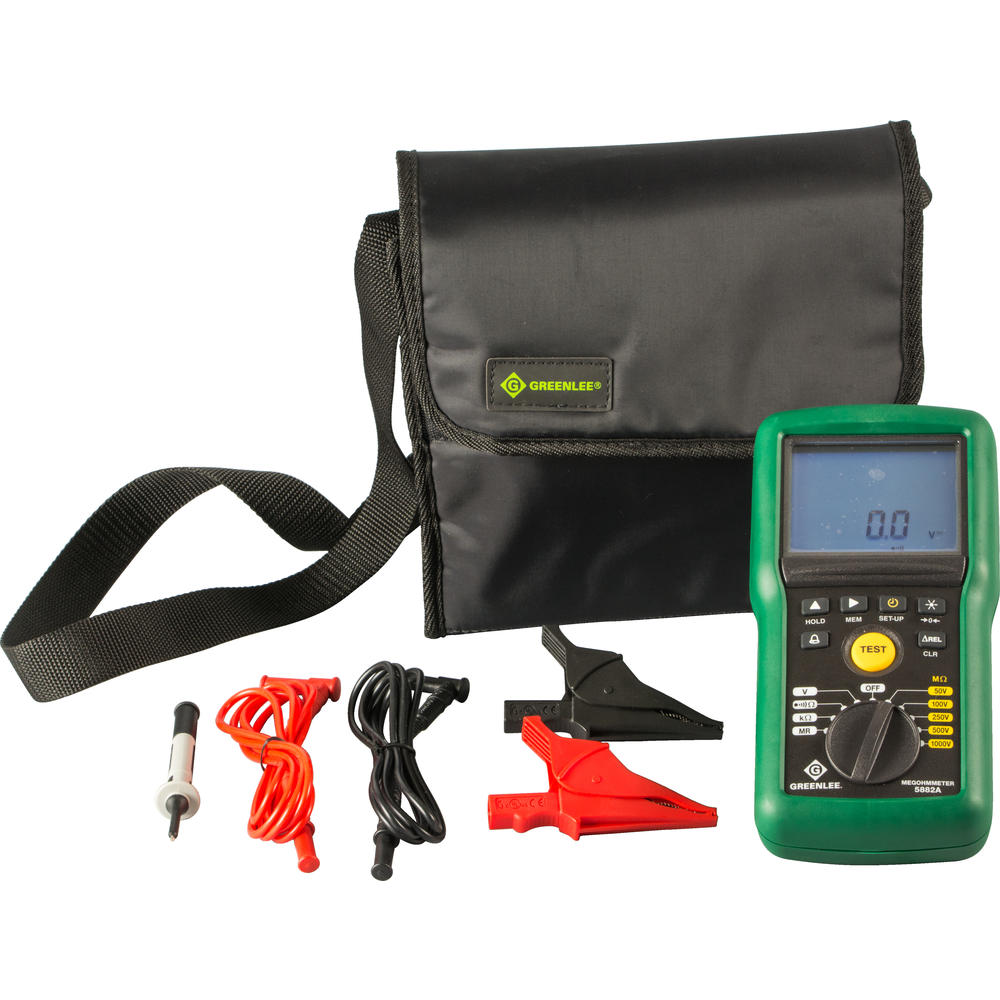

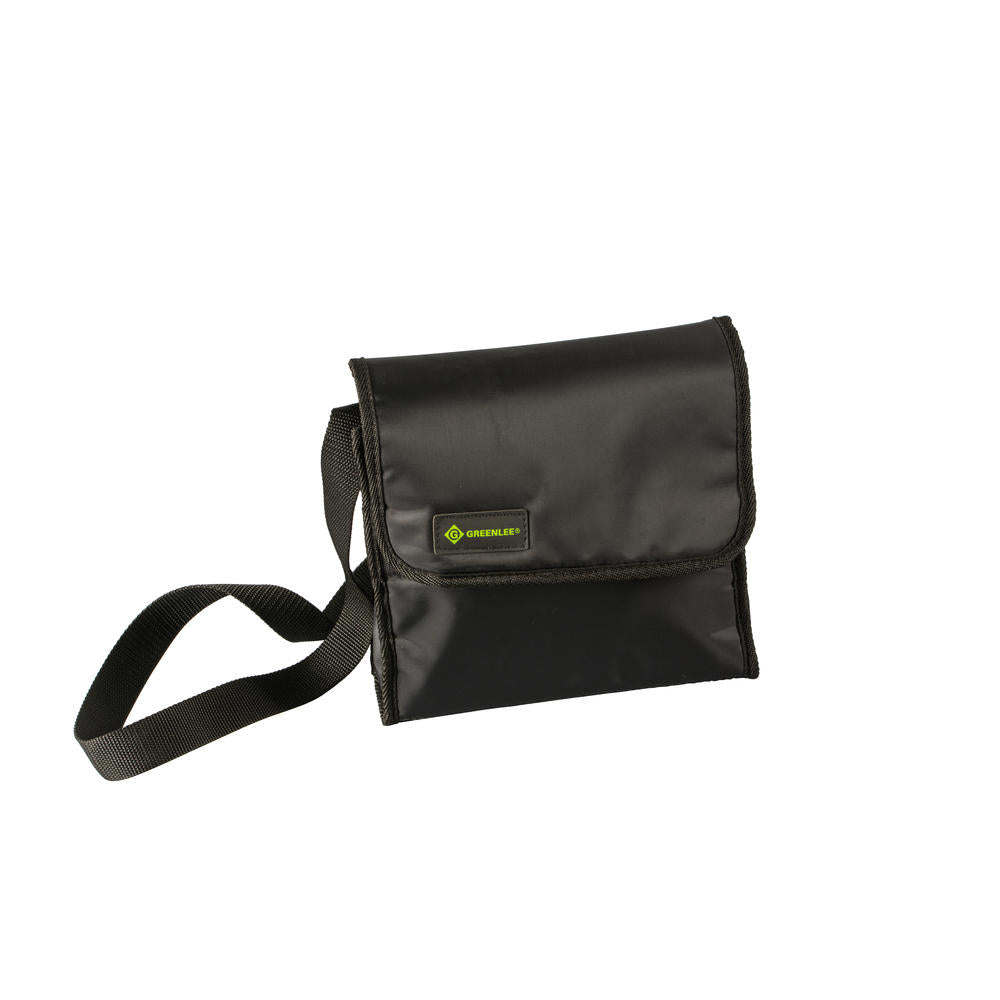

5882A Test Lead Kit, 1kV Megohmmeter 5882A Carrying Case, 1kV Megohmmeter
Packaging
Retail
Country of Origin
France
UPC
783310084815
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
2.10 kg
4.63 lb
Details
Measurement Standard
1kV
Features
Calculations (automatic)
Potential Index and Dielectric Absorption Ratios
Tests Continuity, Resistance and Frequency Measurements
Programmable Alarms
Insulation Test, Resistance, Continuity
Hazardous Voltage Alert (Icon) if voltage is >70 volts 5.) On Board Timer, +1/- 1 sec.
Delta Reading “ΔREL”
Data hold with 300 Entry Memory
Standby Mode (automatic), saves battery power
Hand Held, Compact Light Weight Form
Intuitive Layout with Rotary Function Selector and Large Test Button

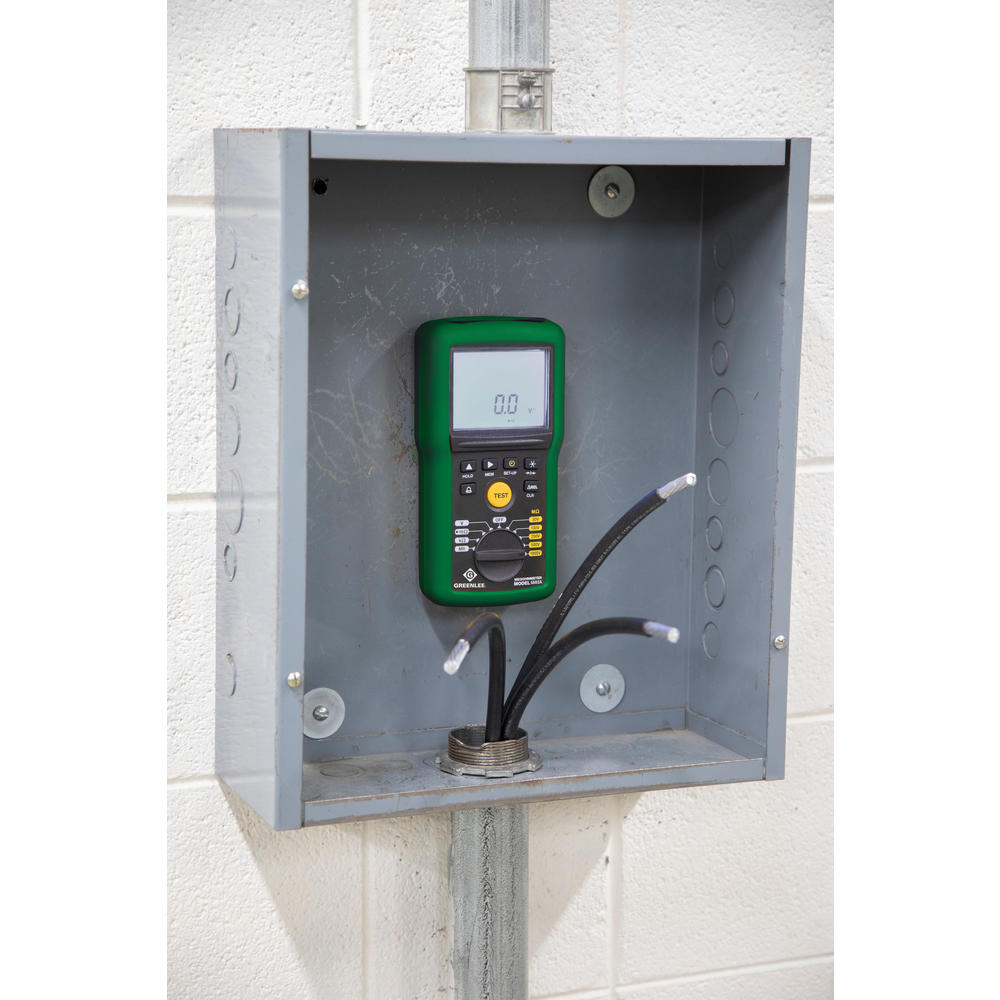

Molded in Magnetic Mount for convenient hands-free measurements
Limited Life Time Warranty
Dated Calibration Certification
Potential Index and Dielectric Absorption Ratios
Tests Continuity, Resistance and Frequency Measurements
Programmable Alarms
Insulation Test, Resistance, Continuity
Hazardous Voltage Alert (Icon) if voltage is >70 volts 5.) On Board Timer, +1/- 1 sec.
Delta Reading “ΔREL”
Data hold with 300 Entry Memory
Standby Mode (automatic), saves battery power
Hand Held, Compact Light Weight Form
Intuitive Layout with Rotary Function Selector and Large Test Button
Molded in Magnetic Mount for convenient hands-free measurements
Limited Life Time Warranty
Dated Calibration Certification
Automatic Discharge: Yes [on completion of insulation test]
Continuity Range: <100Ω
Range: 10kΩ to 200GΩ
Test Voltage: 50V, 100V, 250V, 500V, 1kV
Type: Hand Held
Voltage

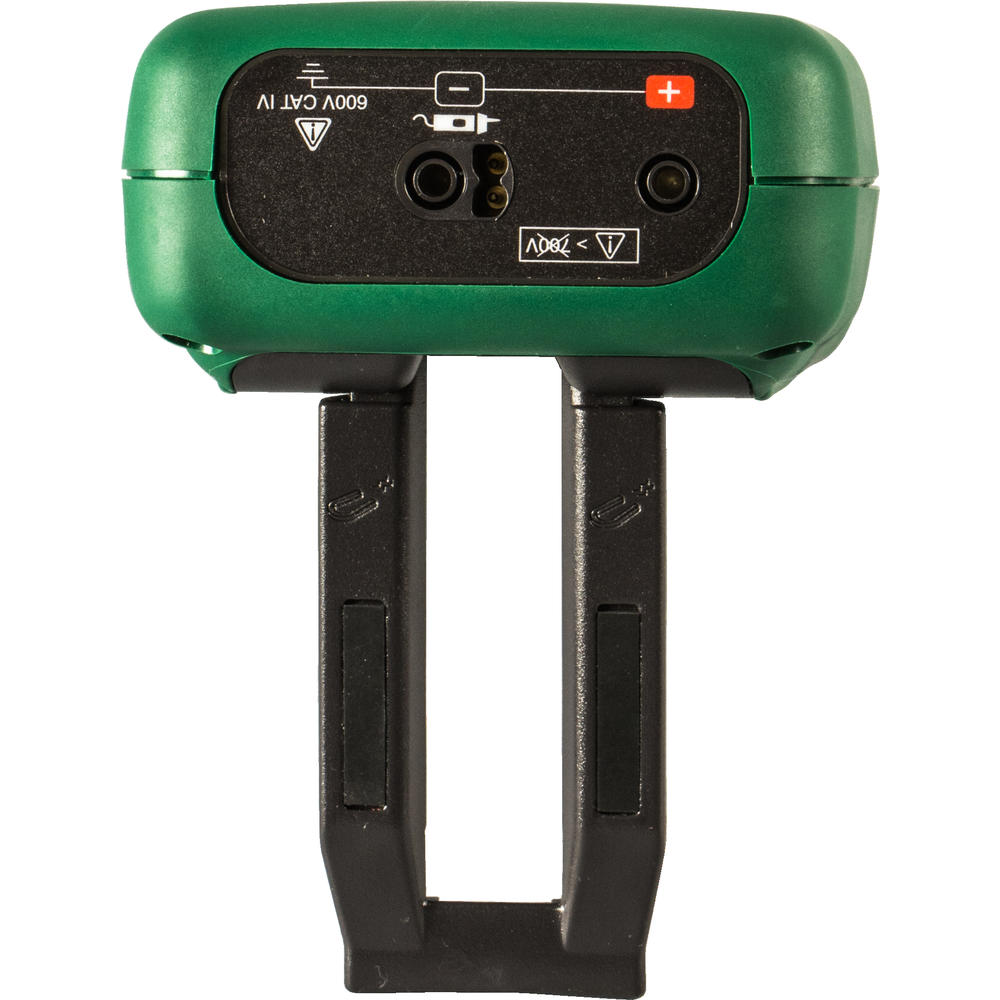

CAT IV, 600V
Resistance (Ohms)
0Ω to 1000kΩ
Display Type
LCD Large/Bright, easy to read Analog Bar Graph and Digital
