General Information
Brand
Greenlee
Part Number

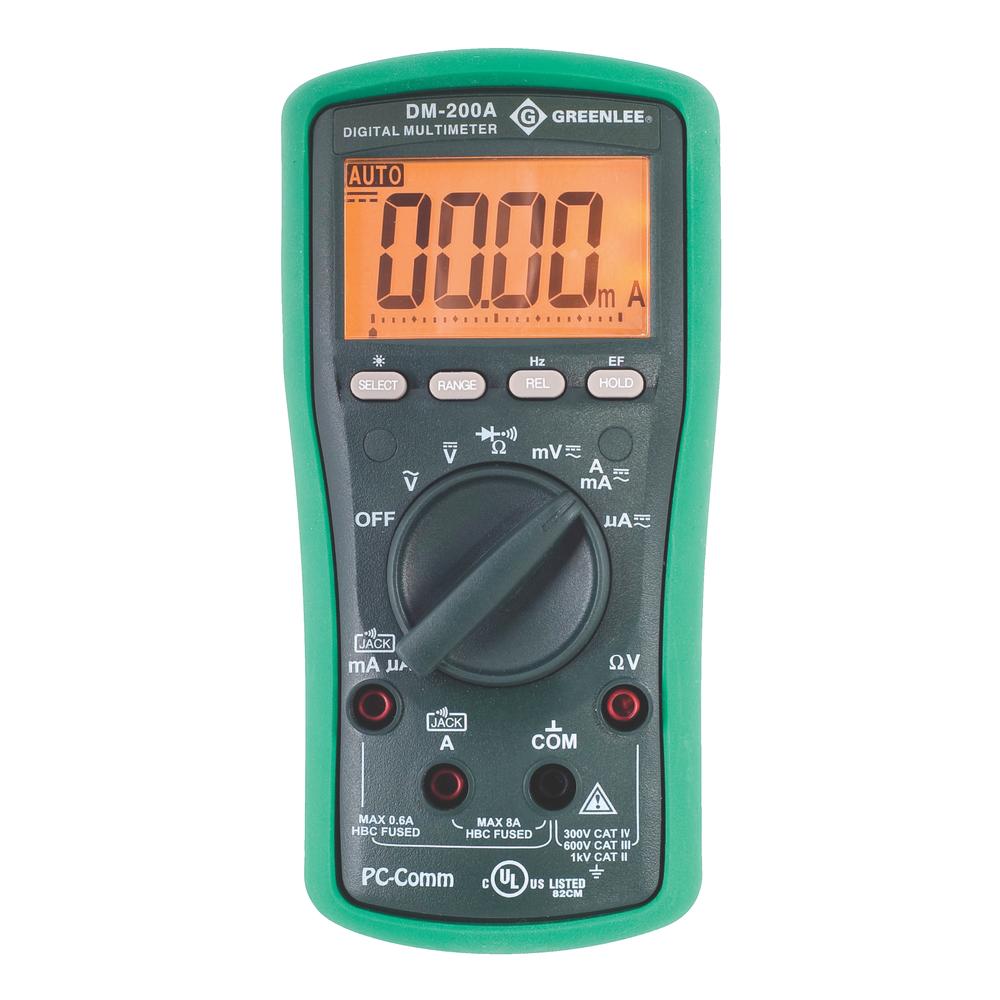

DM-200A-C
Product Type
Digital Multimeter
What’s Included

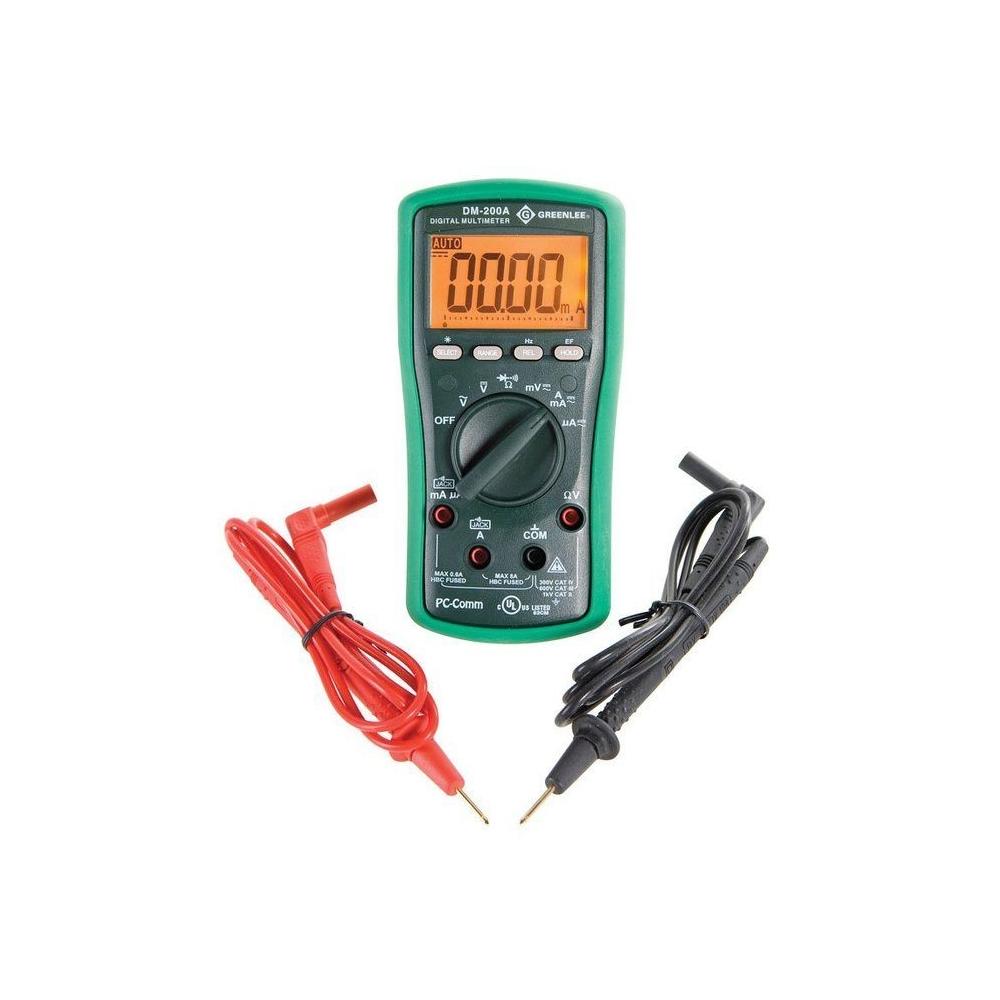

(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400°F/204°C max), Test leads, Protective Boot
Packaging
Retail
Country of Origin
Taiwan
UPC
783310357568
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.05 kg
0.12 lb
Details
Measurement Standard
CAT IV, CAT III, CAT II, C/ULUS Listed, CE Listed
Features
Measures voltage, current, resistance and frequency
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes – non-contact or using a single test lead
Beepjack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 Interface DMSC-2U For direct-to-PC logging
Lifetime Limited Warranty
Includes Certificate of Calibration
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes – non-contact or using a single test lead
Beepjack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 Interface DMSC-2U For direct-to-PC logging
Lifetime Limited Warranty
Includes Certificate of Calibration
Amperage Measurement: 600, 6000μA; 60, 600mA; 6, 8A
Measurement Category: CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Voltage
60, 600 mV; 6, 60, 600, 1000V
Capacitance
60, 600nF; 6, 60, 600, 3000μF
Resistance (Ohms)
600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
Frequency
10Hz – 50kHz Sine Wave, 5Hz- 999.9kHz Logic Level Square Wave
Batteries
(2) 1.5 V AAA
Display Type
Backlit LCD With 6,000 Count
Temperature Range
K Type, -58 To 1832°F (-50 To 1000°C)
