General Information
Brand
IDEAL
Part Number
61-347
Product Type
Digital Multimeter
What’s Included

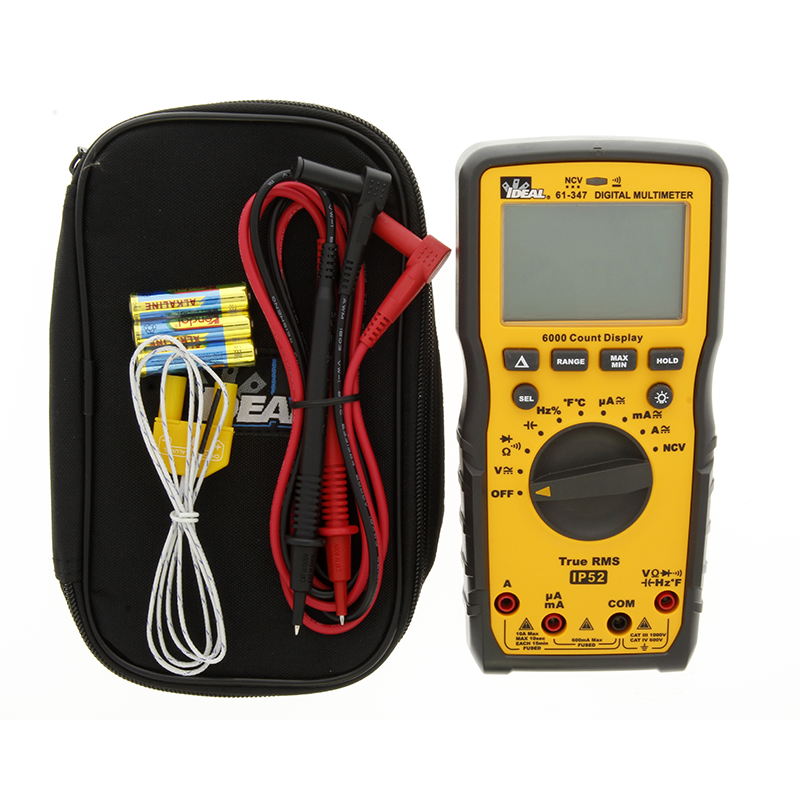

1 x Multimeter, 3 x 1.5V AAA Batteries, 1 x Soft Case, 2 x Test Leads, 1 x K-Type Thermocouple
Packaging
Retail
UPC
783250810529
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Yellow / Black
Length
3.78″
Width
10.61″
Height
6.79″
Weight
0.64 kg
1.40 lb
Details
Measurement Standard
CAT III / CAT IV
Functions
Measures AC and DC, Resistance, Continuity, Diodes and Test Batteries
Features

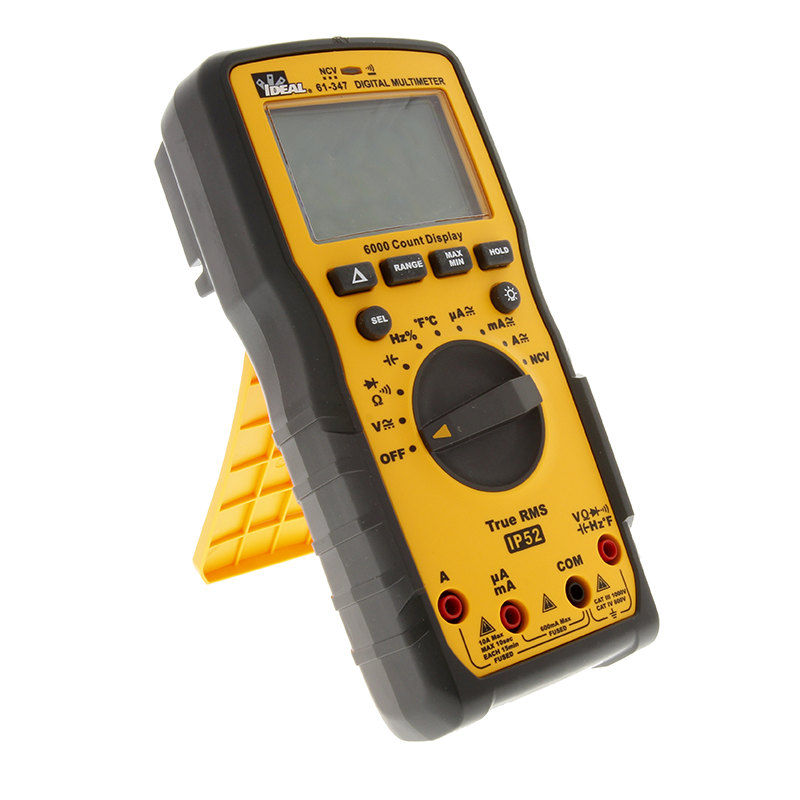

UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures AC/DC Current, AC/DC Voltage, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage

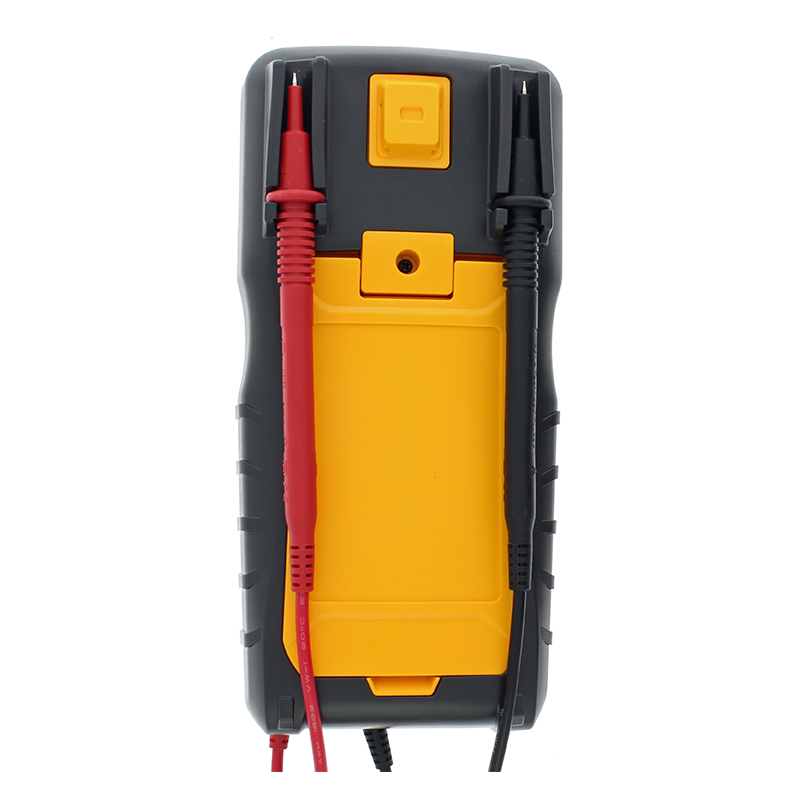

Built-in probe tip holders and hanging strap clip allows safer, easier measurement (Hanging Strap sold separately)
Large easy to read backlit display, allows for safer/faster work in poorly lit environments
Industrial grade boot enhances grip, allows meter to withstand a 6.6 foot (2 m) drop

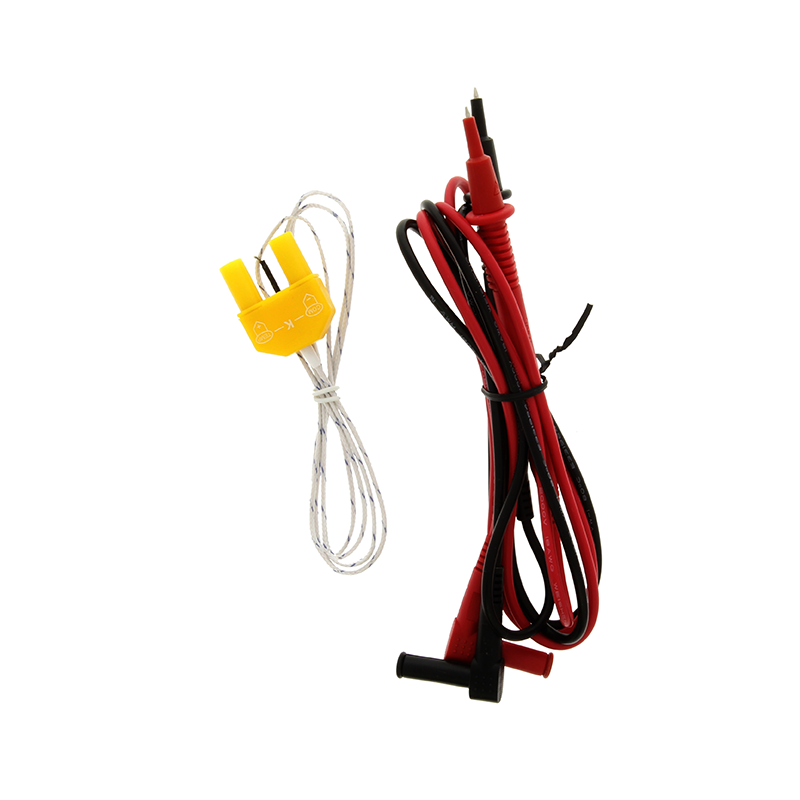

Includes soft case, test leads, batteries, and K-Type Thermocouple
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures AC/DC Current, AC/DC Voltage, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage
Built-in probe tip holders and hanging strap clip allows safer, easier measurement (Hanging Strap sold separately)
Large easy to read backlit display, allows for safer/faster work in poorly lit environments
Industrial grade boot enhances grip, allows meter to withstand a 6.6 foot (2 m) drop
Includes soft case, test leads, batteries, and K-Type Thermocouple
AC Voltage
1000V
DC Voltage
1000V
Current
10A
Voltage
1000V
Capacitance
6000 µF
Resistance (Ohms)
60 MΩ
Frequency
10 Hz – 9.99 KHz

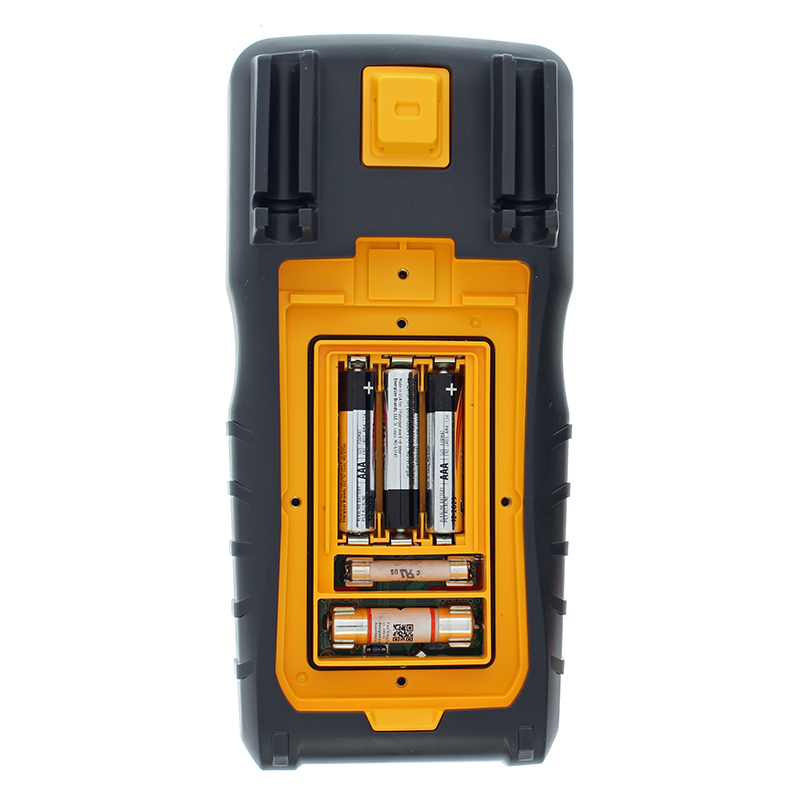

Batteries
3 x 15V AAA
Display Type
LCD
Temperature Range
-40 – 1832°F / -40 – 1000°C
