General Information
Brand
IDEAL
Part Number
61-357
Product Type
Digital Multimeter
Number of Pieces
1 x Multimeter, 3 x 1.5V AAA Batteries, 1 x Soft Case, 2 x Test Leads, 1 x K-Type Thermocouple
Packaging
Retail
UPC
783250810536
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Yellow / Black
Length
3.78″
Width
10.61″
Height
6.79″
Weight
0.64 kg
1.40 lb
Details
Measurement Standard
CAT III / CAT IV
Functions
Measures AC and DC, Resistance, Continuity, Diodes and Test Batteries
Features
UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bargraph on Display
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures AC/DC Current, AC/DC Voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage.

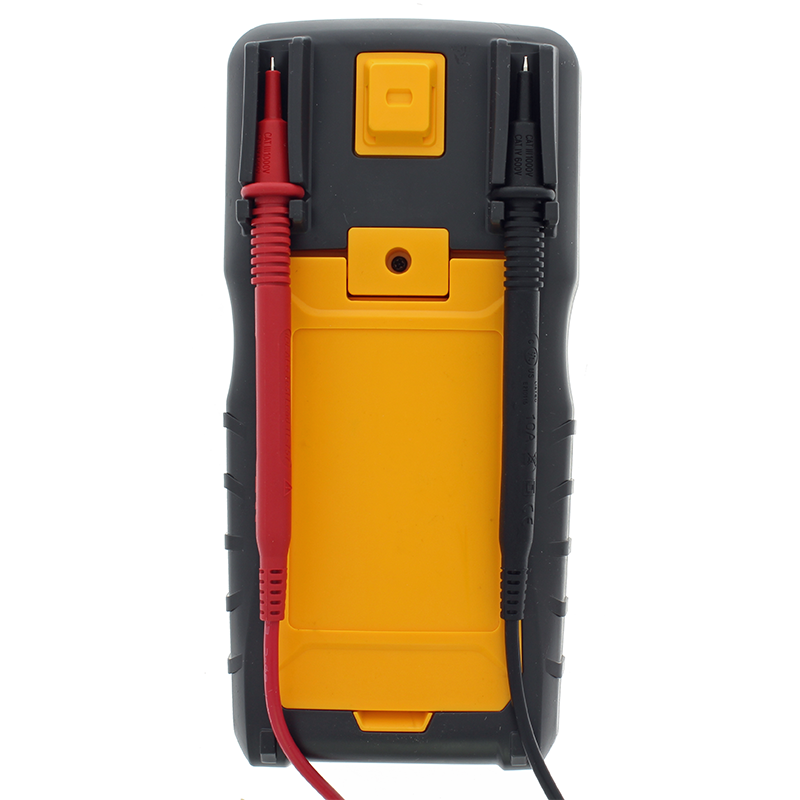

Built-in probe tip holder and hanging strap clip allows safer, easier measurement
Large easy to read l backlit display, allows for safer/faster work in poorly lit environments
Industrial design of removeable rubber boot enhances gripping and allows the meter to withstand a 6.6-foot (2 m) drop
Includes soft case, test leads, batteries, and K-Type Thermocouple

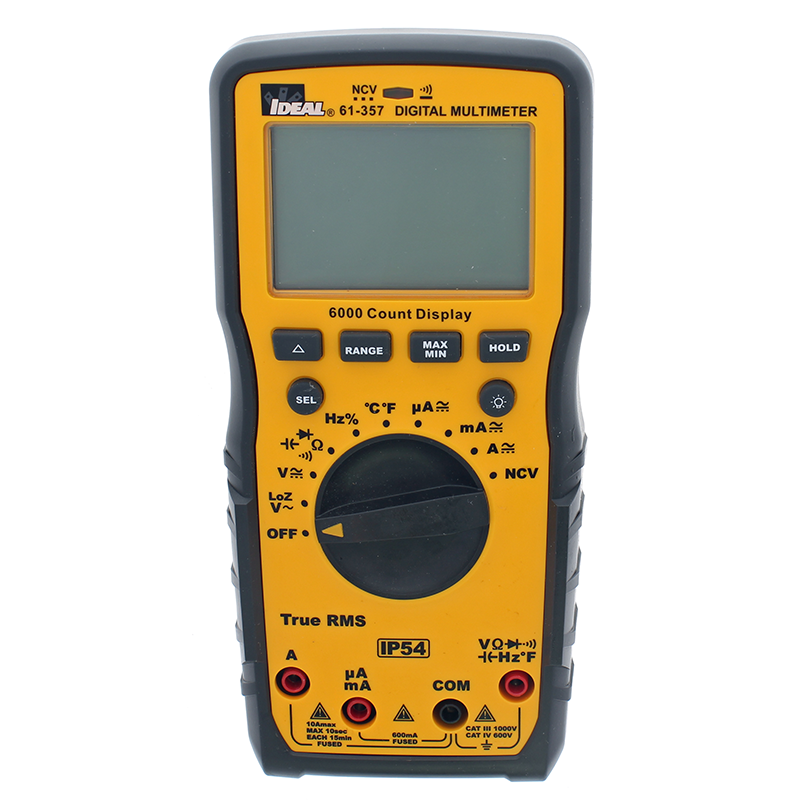

Combined LCD Digital readout and analog bar graph display.
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures AC/DC Current, AC/DC Voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage.
Built-in probe tip holder and hanging strap clip allows safer, easier measurement
Large easy to read l backlit display, allows for safer/faster work in poorly lit environments
Industrial design of removeable rubber boot enhances gripping and allows the meter to withstand a 6.6-foot (2 m) drop
Includes soft case, test leads, batteries, and K-Type Thermocouple
Combined LCD Digital readout and analog bar graph display.
AC Voltage
1000V
DC Voltage
1000V
Current
10A
Voltage
1000V
Capacitance
6000 µF
Resistance (Ohms)
60 MΩ
Frequency
10 Hz – 9.99 KHz
Batteries
3 x 15V AAA
Display Type
LCD & Analog
Temperature Range
-40 – 1832°F / -40 – 1000°C
