General Information
Brand
IDEAL
Part Number
61-415
Product Type
Fork Meter
What’s Included
1 x Fork Meter, 1 x Soft Case, 2 x Test Leads, 3 x 1.5V AAA Batteries
Packaging
Retail
UPC
783250238651
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Yellow / Black
Length
3.24″
Width
12.6″
Height
5.38″
Weight
0.63 kg
1.39 lb
Details
Measurement Standard
CAT III / IV
Functions
Measures AC and DC, Resistance, Continuity, Diodes and Test Batteries
Features
UL Certified CAT IV 600V & CAT III 1000V, measures 0-200 Amps AC/DC and 0-1000 Volts AC/DC
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures AC/DC Current, AC/DC Voltage, continuity, resistance, capacitance, diodes, and senses AC voltage
Built-in probe tip holder and hanging strap clip allows safer, easier measurement and probe storage

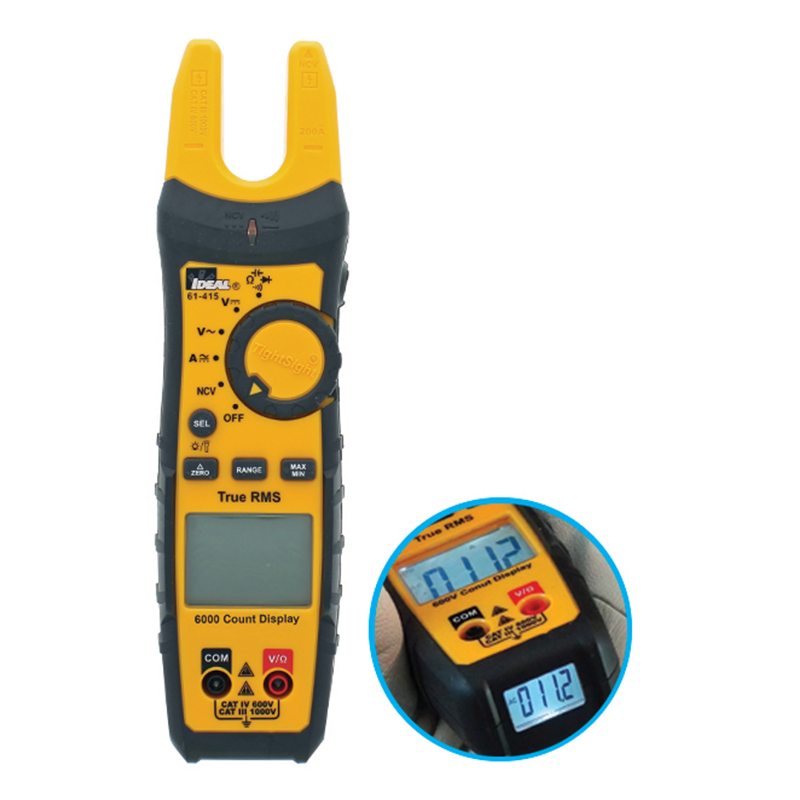

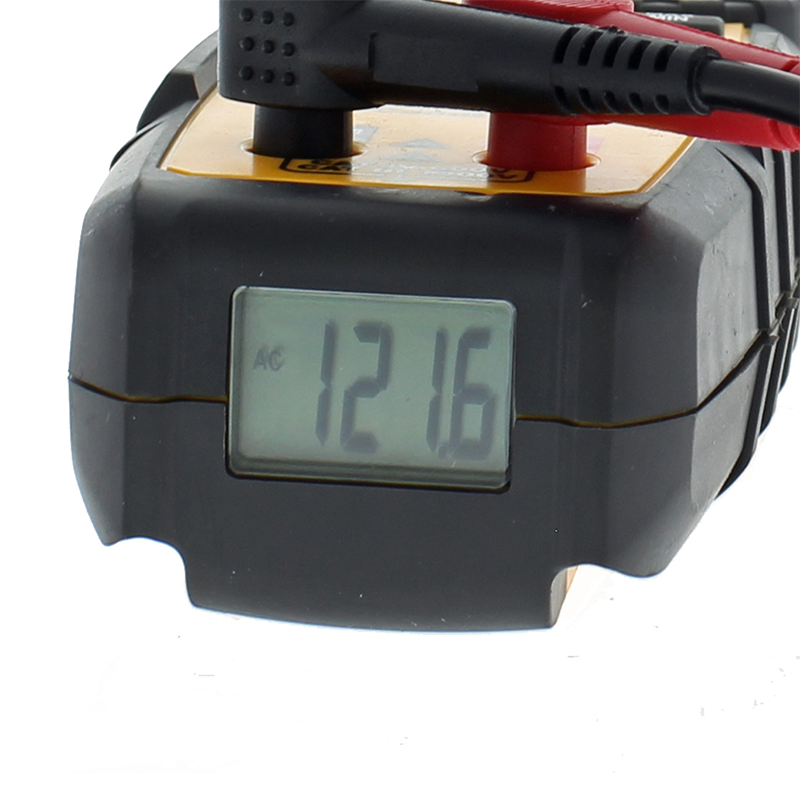

Built-in Flashlight and Dual backlit displays allow for safer/faster work in poorly lit environments
Includes soft case, test leads, and batteries
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures AC/DC Current, AC/DC Voltage, continuity, resistance, capacitance, diodes, and senses AC voltage
Built-in probe tip holder and hanging strap clip allows safer, easier measurement and probe storage
Built-in Flashlight and Dual backlit displays allow for safer/faster work in poorly lit environments
Includes soft case, test leads, and batteries
Jaw Size
0.75 in (19 mm)
AC Voltage
1000V
DC Voltage
1000V
Current
200
Voltage
1000V
Capacitance
6.000 mF
Resistance (Ohms)
60 MΩ
Batteries
3 x 15V AAA
Display Type
LCD
