General Information
Brand
Klein Tools
Part Number
VDV501-852
Product Type
Scout Pro 3 Tester

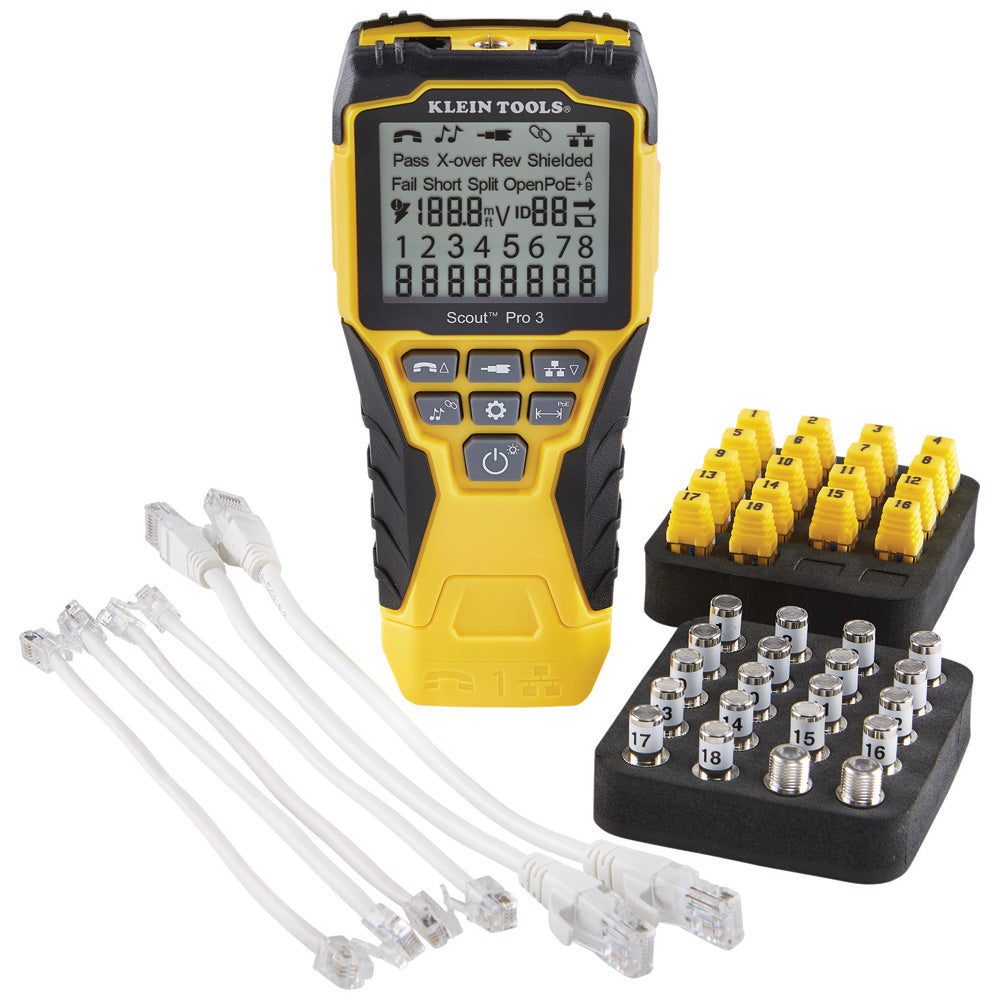

What’s Included
Tester, Self-storing Test + Map™ Remote (#1), 18 – RJ45 LAN Locator Remotes, 18 – F Coax Locator Remotes, 2 – Coaxial Barrel Adapters (female-to-female), 2 – RJ45 Jumper Cables (6”), 2 – RJ11 Jumper Cables, 2 – RJ12 Jumper Cables, Carrying Case, 1 x 9V Battery
Packaging
Retail
UPC
092644583261
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Yellow / Black
Material
Plastic and Metal
Length
7” (17.8 cm)
Width
1.5” (3.8 cm)
Height
3.2” (8 cm)
Weight
0.5443104 kg
1.2 lb
Details
Features

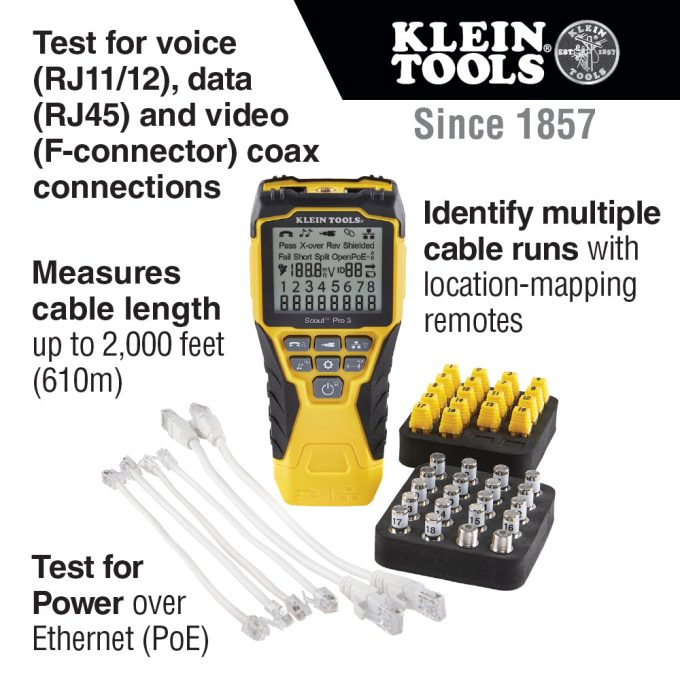

Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
Trace cables, wire pairs and individual conductor wires with a tone generator

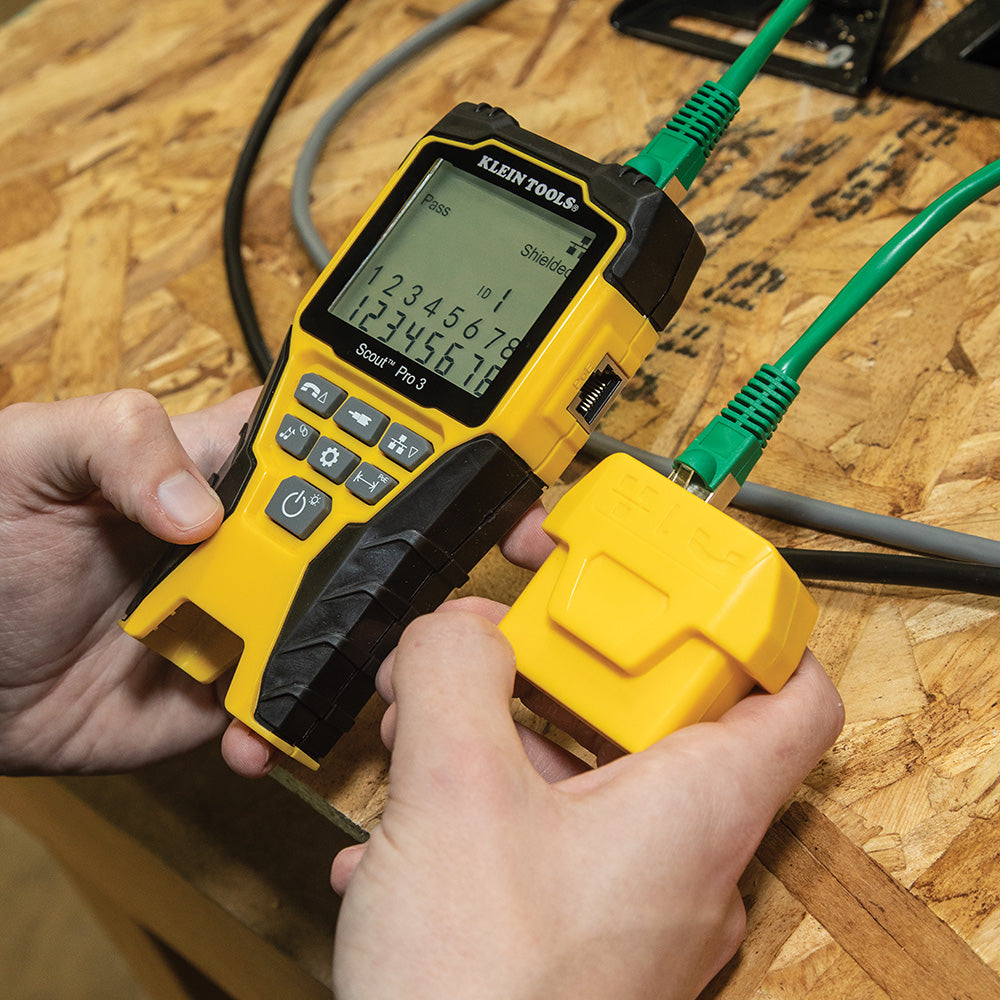

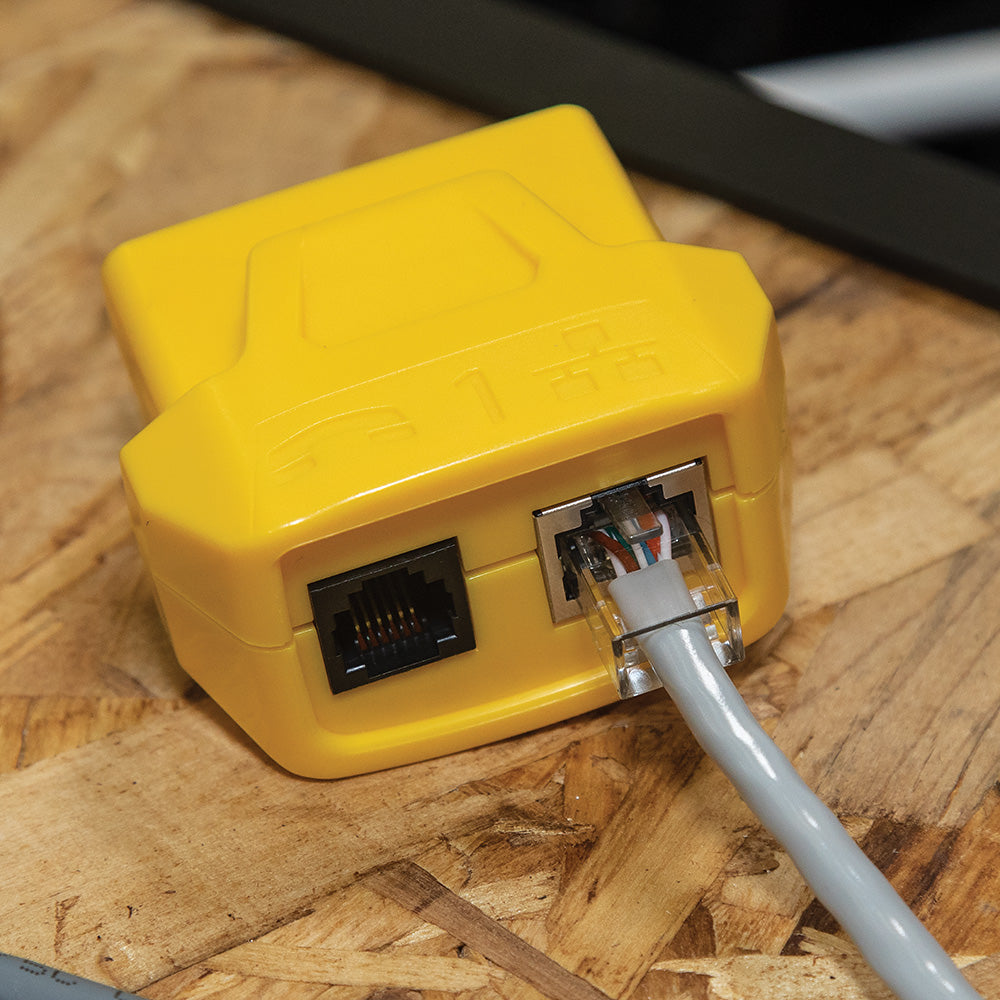

Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step

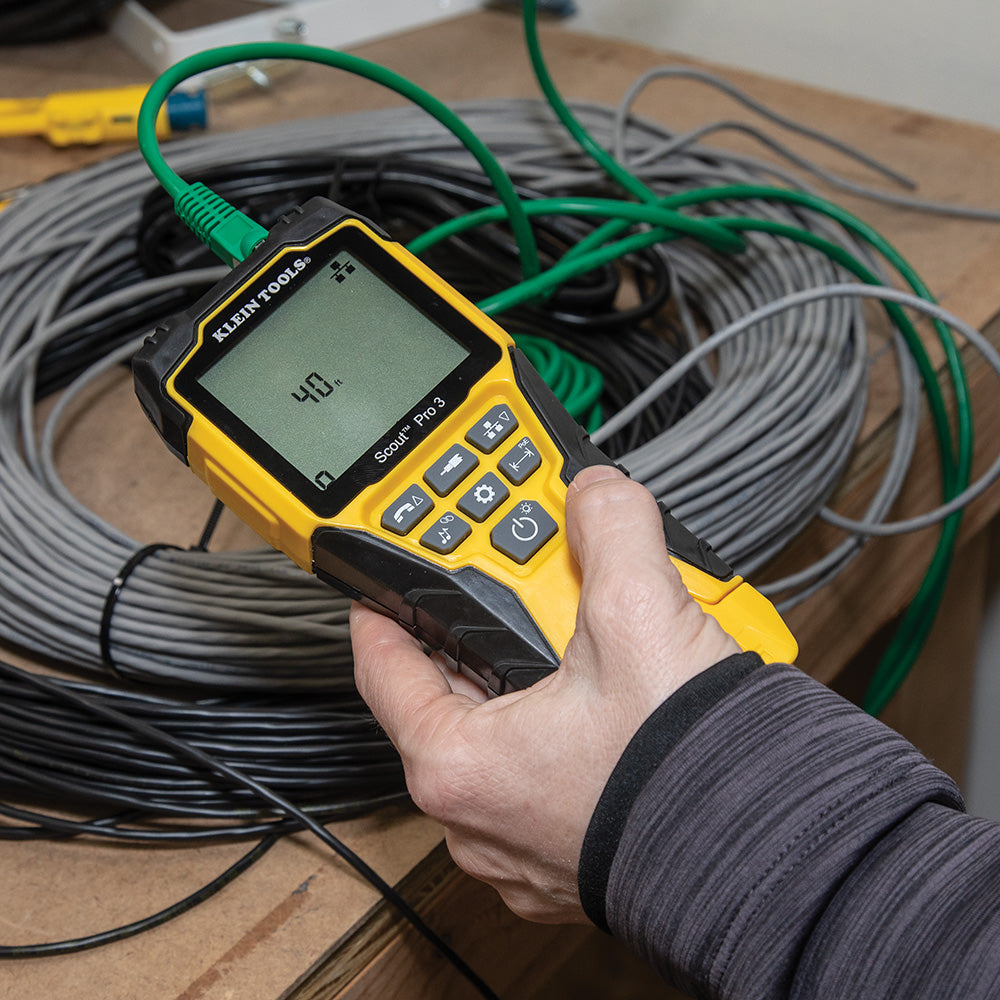

Measures cable length up to 2,000 feet (610 m)
Identify multiple cable runs with location-mapping remotes

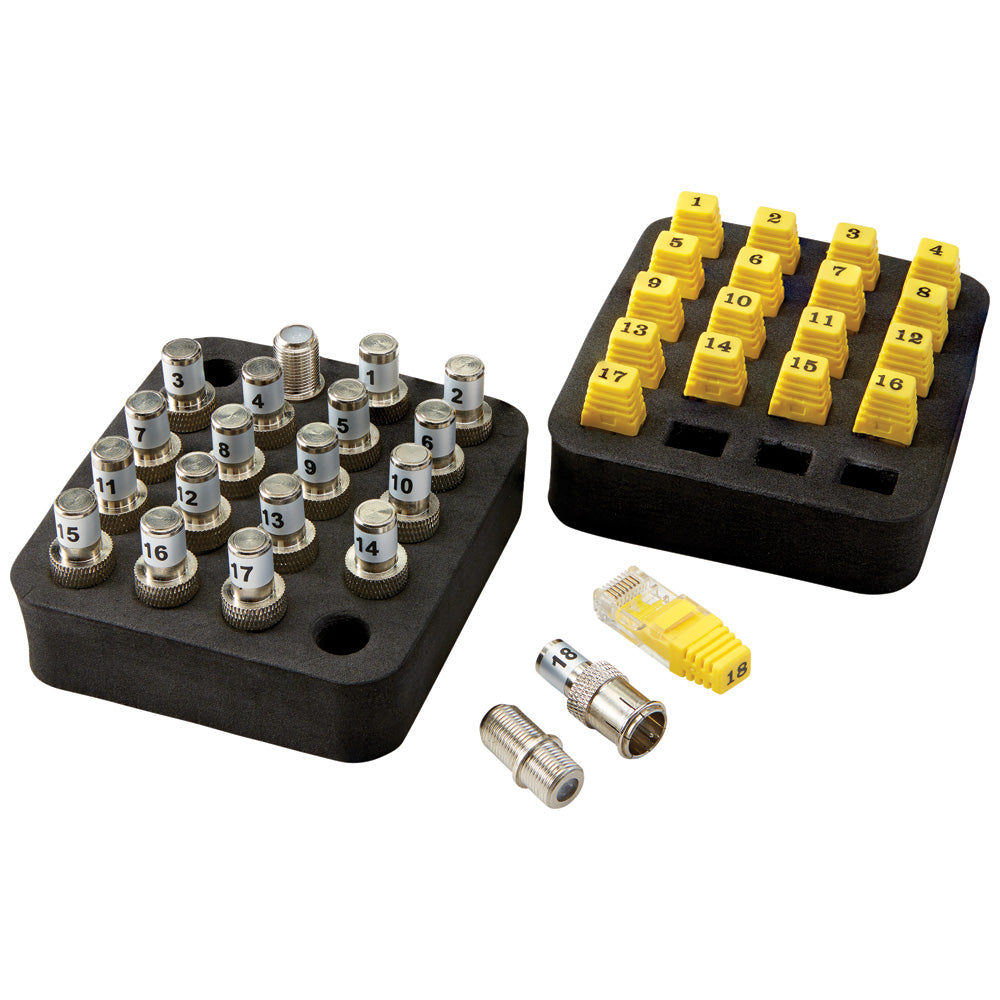

Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers

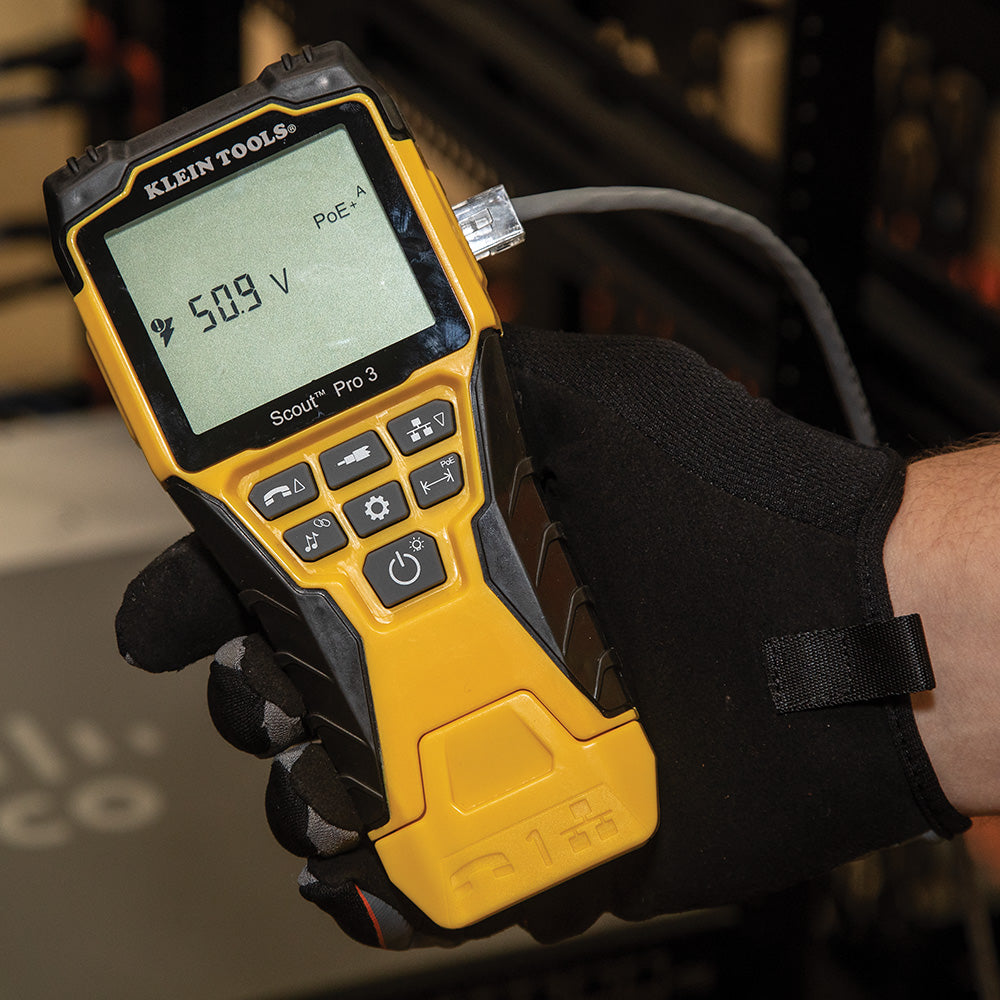

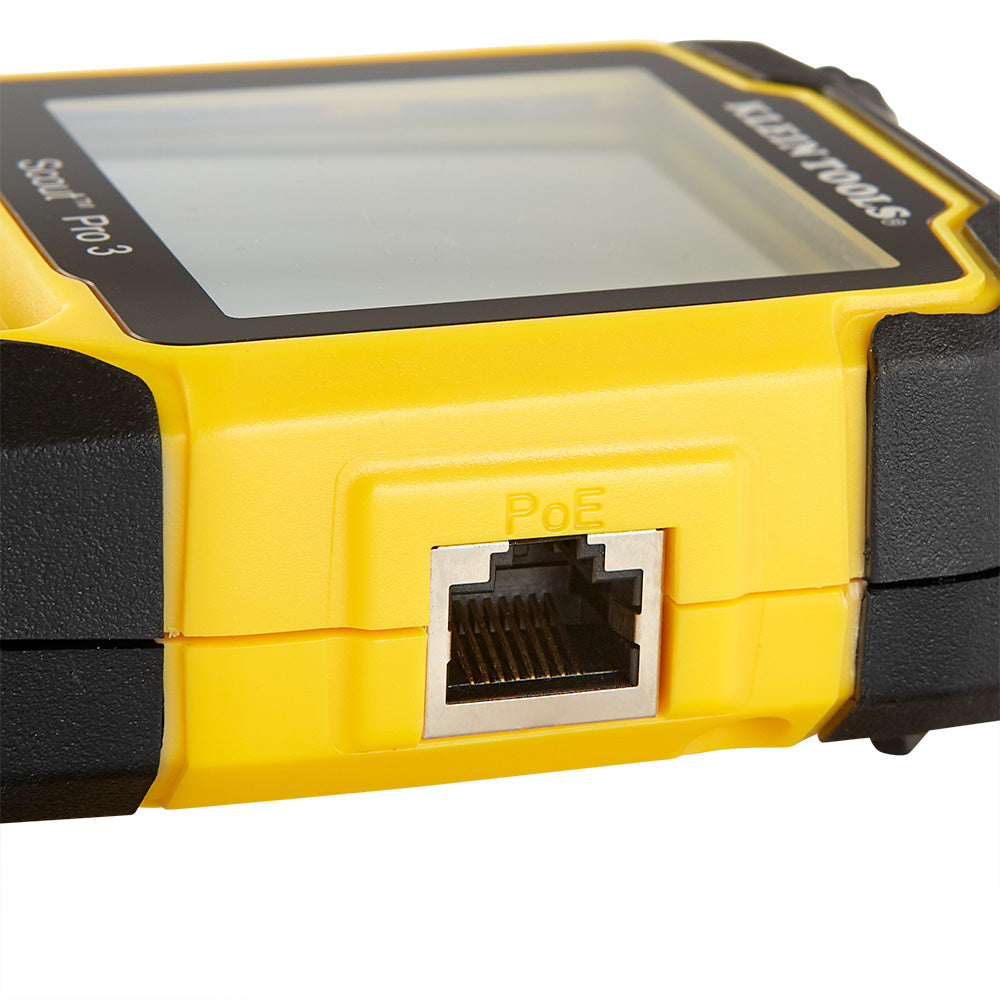

Detect, identify and test Power over Ethernet (PoE)

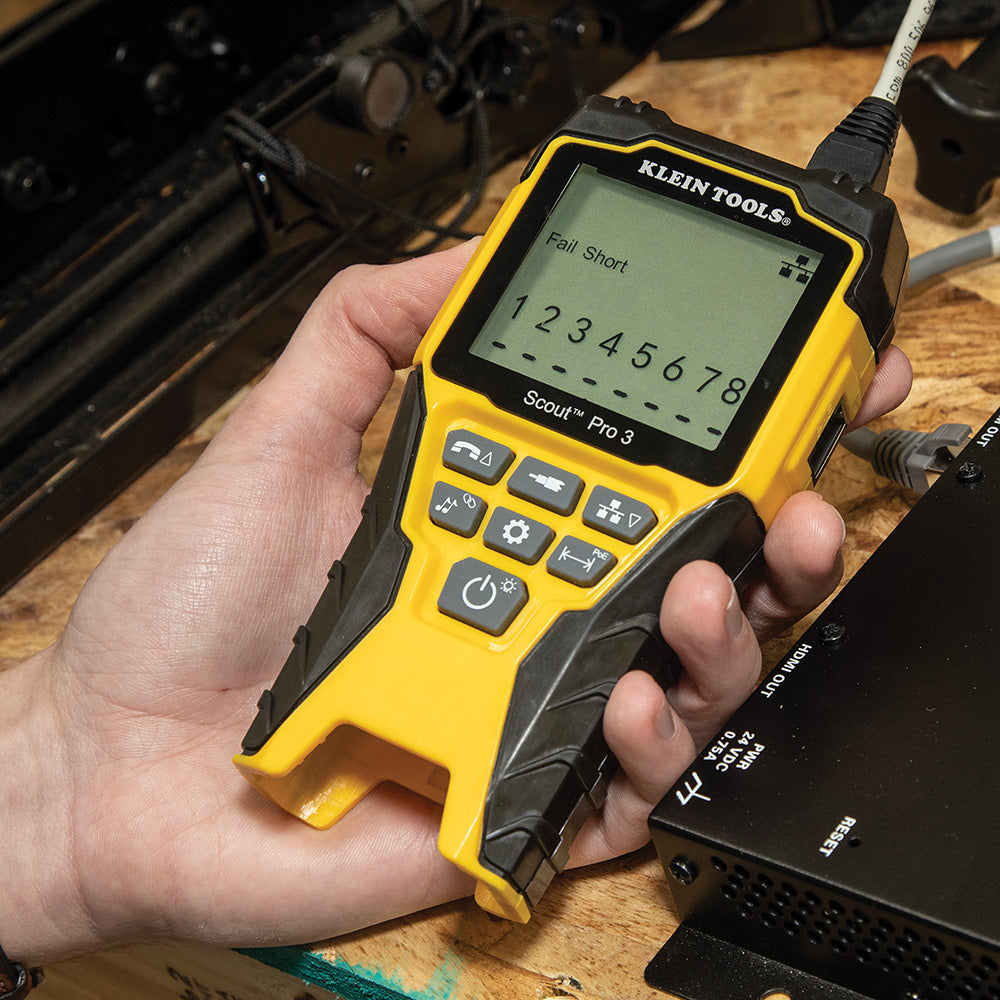

Backlit LCD screen displays cable length, wiremap, cable ID and test results

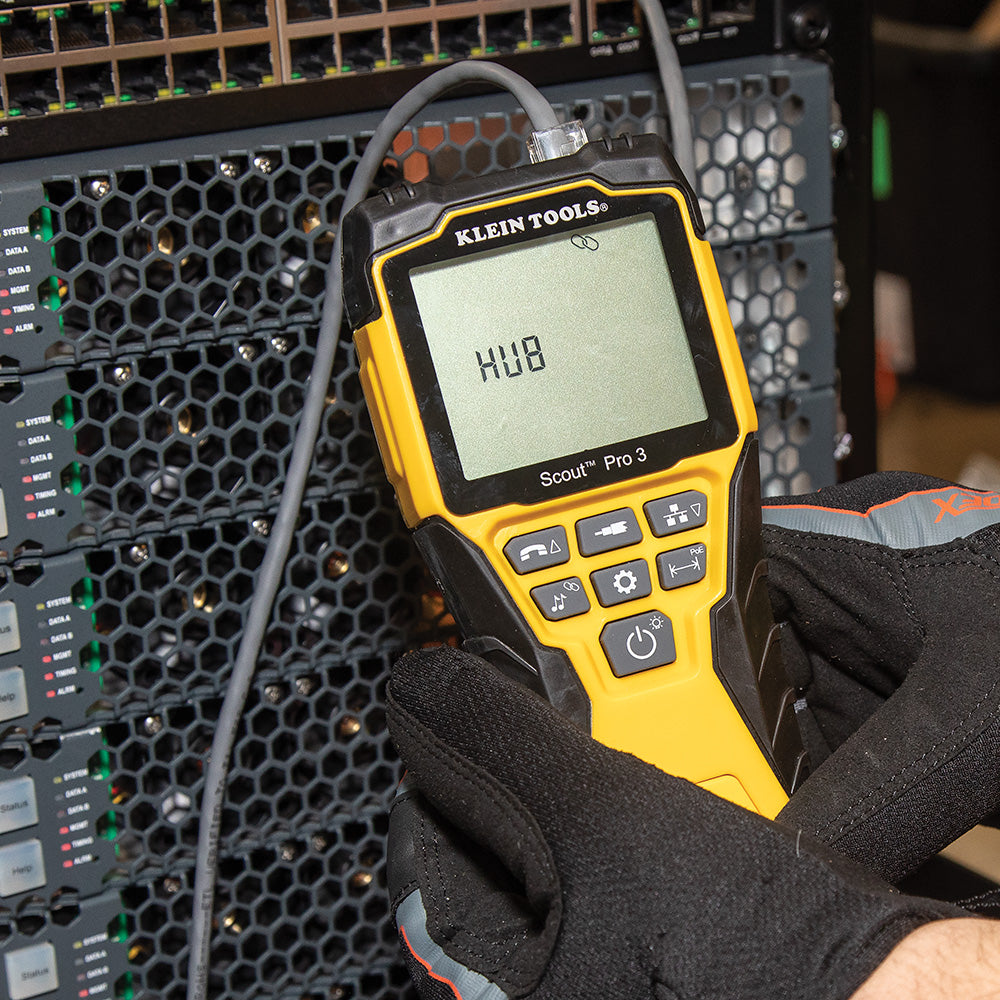

Hub blink mode to identify port location on a hub or a switch
Includes 1 Self-storing Test + Map Remote (31), 18 RJ45 LAN locator remotes, 18 F coax locator remotes, 2 female-to-female coax adapters and a 9V battery
Convenient padded carrying case keeps everything together and in reach
Trace cables, wire pairs and individual conductor wires with a tone generator
Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step
Measures cable length up to 2,000 feet (610 m)
Identify multiple cable runs with location-mapping remotes
Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers
Detect, identify and test Power over Ethernet (PoE)
Backlit LCD screen displays cable length, wiremap, cable ID and test results
Hub blink mode to identify port location on a hub or a switch
Includes 1 Self-storing Test + Map Remote (31), 18 RJ45 LAN locator remotes, 18 F coax locator remotes, 2 female-to-female coax adapters and a 9V battery
Convenient padded carrying case keeps everything together and in reach
Batteries
9V Alkaline
Battery Life
50 Hours Active
ID Remotes
(1) Self-Storing
Cable Type
DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Connection & Adapter Types
RJ11, RJ12, RJ45, Coax F
Display Type
Backlit LCD
Test & Measure Types
Ethernet, Data, Coaxial
Faults Detected

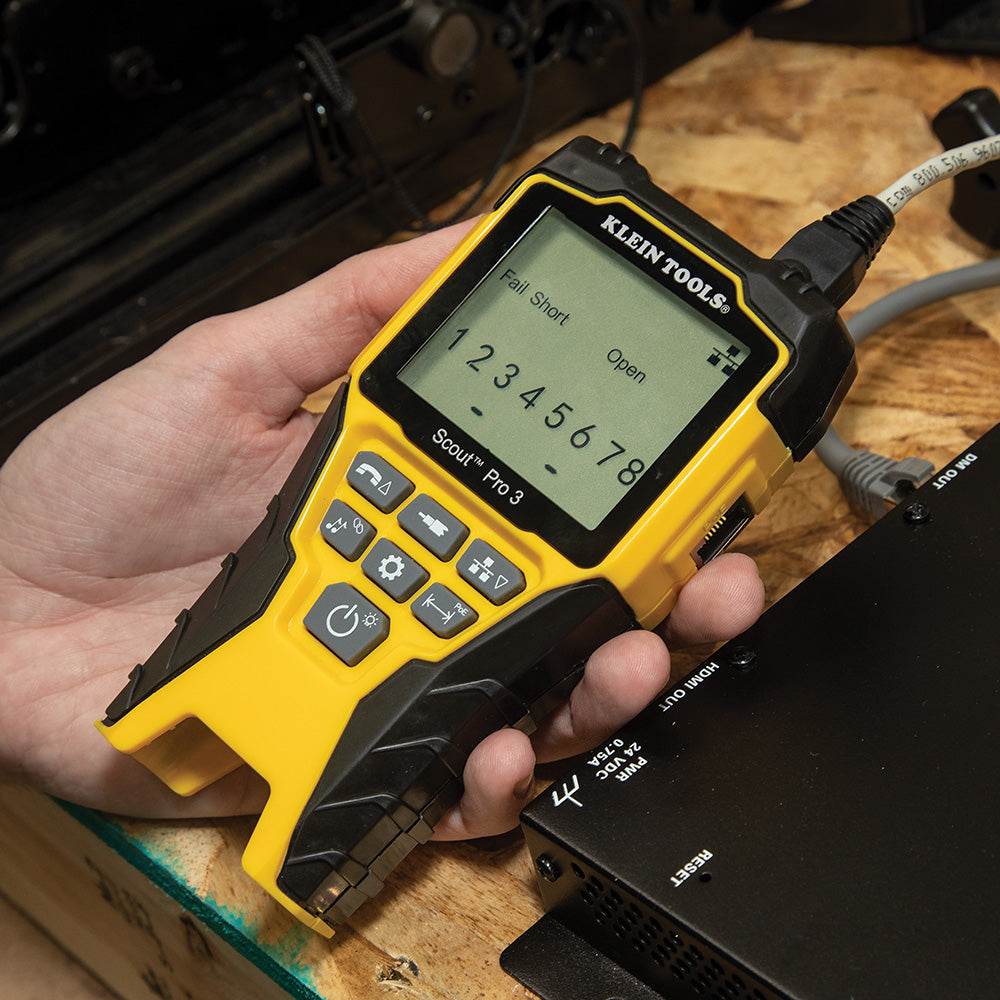

Open, Short, Miswire
